Retaining Rings - Internal - Circlips - Bevelled

89 Products in this selection
  • N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
  • A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
  • Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
  • Used in greasy or oily environments.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Bevelled. Smallparts promote the most popular MBA products.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) min/max Groove Width (W) Indicative
Housing Bore (B)
53.98
mm

(2.125 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
57.89
mm
+/- 0.08
(2.279 in.)
Approx. Loose Circlip OD (Dr)
58.93
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.44 - 4.95
Groove Width (W)
1.65
mm
+ 0.04 / - 0.00

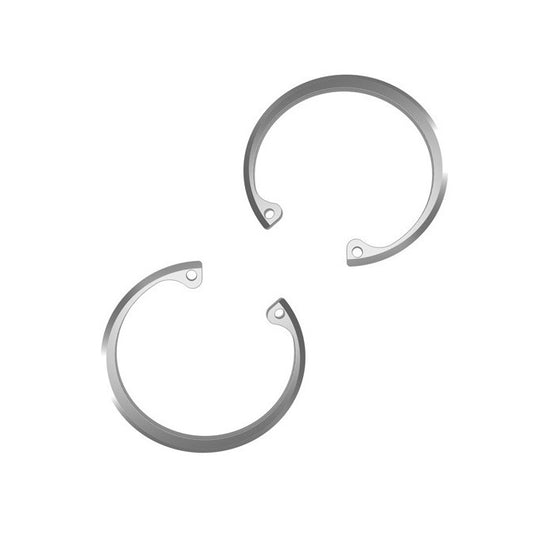

Internal Retaining Rings - 53.98x1.91x57.89 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Part Number: CIB-05398-C (4 Pcs) Internal Retaining Rings - 53.98x1.91x57.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$18.50 AUD
$18.50 AUD
Per 4
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
53.98
mm

(2.125 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
57.89
mm
+/- 0.08
(2.279 in.)
Approx. Loose Circlip OD (Dr)
58.93
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 53.98x1.91x57.89 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.44 - 4.95    Groove Width (W): 1.65 mm + 0.04 / - 0.00   Tool: PRS-I090
Part Number: CIB-05398-C (4 Pcs) Internal Retaining Rings - 53.98x1.91x57.89 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$18.50 AUD
$18.50 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
54.99
mm

(2.165 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
59.11
mm
+/- 0.08
(2.327 in.)
Approx. Loose Circlip OD (Dr)
60.58
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.49 - 5.05
Groove Width (W)
1.63
mm
+ 0.04 / - 0.00

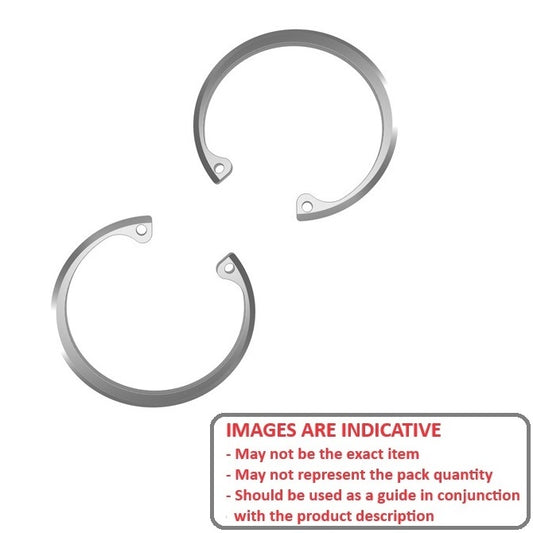

Internal Retaining Rings - 54.99x1.91x59.11 mm - Spring Steel
Material: Spring Steel    Tool: PRS-I090
Part Number: CIB-05499-C Internal Retaining Rings - 54.99x1.91x59.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
54.99
mm

(2.165 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
59.11
mm
+/- 0.08
(2.327 in.)
Approx. Loose Circlip OD (Dr)
60.58
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 54.99x1.91x59.11 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 2.49 - 5.05    Groove Width (W): 1.63 mm + 0.04 / - 0.00   Tool: PRS-I090
Part Number: CIB-05499-C Internal Retaining Rings - 54.99x1.91x59.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
55.58
mm

(2.188 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
59.69
mm
+/- 0.08
(2.35 in.)
Approx. Loose Circlip OD (Dr)
60.58
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.49 - 5.05
Groove Width (W)
1.63
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 55.58x1.91x59.69 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Part Number: CIB-05558-C (3 Pcs) Internal Retaining Rings - 55.58x1.91x59.69 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$18.59 AUD
$18.59 AUD
Per 3
Housing Bore (B)
55.58
mm

(2.188 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
59.69
mm
+/- 0.08
(2.35 in.)
Approx. Loose Circlip OD (Dr)
60.58
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 55.58x1.91x59.69 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.49 - 5.05    Groove Width (W): 1.63 mm + 0.04 / - 0.00   Tool: PRS-I090
Part Number: CIB-05558-C (3 Pcs) Internal Retaining Rings - 55.58x1.91x59.69 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$18.59 AUD
$18.59 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
57.15
mm

(2.25 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
61.47
mm
+/- 0.08
(2.42 in.)
Approx. Loose Circlip OD (Dr)
62.48
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.51 - 5.16
Groove Width (W)
1.63
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 57.15x1.91x61.47 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Part Number: CIB-05715-C (3 Pcs) Internal Retaining Rings - 57.15x1.91x61.47 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$19.23 AUD
$19.23 AUD
Per 3
Housing Bore (B)
57.15
mm

(2.25 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
61.47
mm
+/- 0.08
(2.42 in.)
Approx. Loose Circlip OD (Dr)
62.48
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 57.15x1.91x61.47 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.51 - 5.16    Groove Width (W): 1.63 mm + 0.04 / - 0.00   Tool: PRS-I090
Part Number: CIB-05715-C (3 Pcs) Internal Retaining Rings - 57.15x1.91x61.47 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$19.23 AUD
$19.23 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
58.74
mm

(2.313 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
63.01
mm
+/- 0.08
(2.481 in.)
Approx. Loose Circlip OD (Dr)
63.63
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.54 - 5.23
Groove Width (W)
1.60
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 58.74x1.91x63.01 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Part Number: CIB-05874-C (3 Pcs) Internal Retaining Rings - 58.74x1.91x63.01 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$19.50 AUD
$19.50 AUD
Per 3
Housing Bore (B)
58.74
mm

(2.313 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
63.01
mm
+/- 0.08
(2.481 in.)
Approx. Loose Circlip OD (Dr)
63.63
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 58.74x1.91x63.01 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.54 - 5.23    Groove Width (W): 1.60 mm + 0.04 / - 0.00   Tool: PRS-I090
Part Number: CIB-05874-C (3 Pcs) Internal Retaining Rings - 58.74x1.91x63.01 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$19.50 AUD
$19.50 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
60.33
mm

(2.375 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
64.78
mm
+/- 0.08
(2.55 in.)
Approx. Loose Circlip OD (Dr)
66.04
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.59 - 5.26
Groove Width (W)
1.60
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 60.33x1.91x64.78 mm - Carbon Steel
Material: Carbon Steel    Tool: PRS-I090
Part Number: CIB-06033-C (3 Pcs) Internal Retaining Rings - 60.33x1.91x64.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.05 AUD
$20.05 AUD
Per 3
Housing Bore (B)
60.33
mm

(2.375 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
64.78
mm
+/- 0.08
(2.55 in.)
Approx. Loose Circlip OD (Dr)
66.04
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 60.33x1.91x64.78 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.59 - 5.26    Groove Width (W): 1.60 mm + 0.04 / - 0.00   Tool: PRS-I090
Part Number: CIB-06033-C (3 Pcs) Internal Retaining Rings - 60.33x1.91x64.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.05 AUD
$20.05 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
61.98
mm

(2.44 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
66.50
mm
+/- 0.08
(2.618 in.)
Approx. Loose Circlip OD (Dr)
67.87
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.62 - 53.09
Groove Width (W)
1.57
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 61.98x1.91x66.5 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-06198-C (3 Pcs) Internal Retaining Rings - 61.98x1.91x66.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$21.14 AUD
$21.14 AUD
Per 3
Housing Bore (B)
61.98
mm

(2.44 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
66.50
mm
+/- 0.08
(2.618 in.)
Approx. Loose Circlip OD (Dr)
67.87
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 61.98x1.91x66.5 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.62 - 53.09    Groove Width (W): 1.57 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06198-C (3 Pcs) Internal Retaining Rings - 61.98x1.91x66.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$21.14 AUD
$21.14 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
63.50
mm

(2.5 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
68.17
mm
+/- 0.08
(2.684 in.)
Approx. Loose Circlip OD (Dr)
69.72
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.62 - 5.33
Groove Width (W)
1.57
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 63.5x1.91x68.17 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-06350-C Internal Retaining Rings - 63.5x1.91x68.17 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$10.95 AUD
$10.95 AUD
Each
Housing Bore (B)
63.50
mm

(2.5 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
68.17
mm
+/- 0.08
(2.684 in.)
Approx. Loose Circlip OD (Dr)
69.72
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 63.5x1.91x68.17 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.62 - 5.33    Groove Width (W): 1.57 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06350-C Internal Retaining Rings - 63.5x1.91x68.17 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$10.95 AUD
$10.95 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
64.29
mm

(2.531 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
69.01
mm
+/- 0.08
(2.717 in.)
Approx. Loose Circlip OD (Dr)
69.72
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.62 - 5.33
Groove Width (W)
1.57
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 64.29x1.91x69.01 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I108
Part Number: CIB-06429-C Internal Retaining Rings - 64.29x1.91x69.01 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
64.29
mm

(2.531 in.)
Clip Thickness (T)
1.91
mm
+ 0.15 / - 0.00
(0.075 in.)
Groove Dia. (Dg)
69.01
mm
+/- 0.08
(2.717 in.)
Approx. Loose Circlip OD (Dr)
69.72
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 64.29x1.91x69.01 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 2.62 - 5.33    Groove Width (W): 1.57 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06429-C Internal Retaining Rings - 64.29x1.91x69.01 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
65.07
mm

(2.562 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
69.85
mm
+/- 0.08
(2.75 in.)
Approx. Loose Circlip OD (Dr)
71.48
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.77 - 5.64
Groove Width (W)
1.98
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 65.07x2.29x69.85 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-06507-C Internal Retaining Rings - 65.07x2.29x69.85 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$12.41 AUD
$12.41 AUD
Each
Housing Bore (B)
65.07
mm

(2.562 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
69.85
mm
+/- 0.08
(2.75 in.)
Approx. Loose Circlip OD (Dr)
71.48
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 65.07x2.29x69.85 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.77 - 5.64    Groove Width (W): 1.98 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06507-C Internal Retaining Rings - 65.07x2.29x69.85 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$12.41 AUD
$12.41 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
66.68
mm

(2.625 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
71.63
mm
+/- 0.08
(2.82 in.)
Approx. Loose Circlip OD (Dr)
73.15
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.82 - 5.74
Groove Width (W)
1.96
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 66.68x2.29x71.63 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I108
Part Number: CIB-06668-C (25 Pcs) Internal Retaining Rings - 66.68x2.29x71.63 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$785.50 AUD
$785.50 AUD
Per 25
Housing Bore (B)
66.68
mm

(2.625 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
71.63
mm
+/- 0.08
(2.82 in.)
Approx. Loose Circlip OD (Dr)
73.15
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 66.68x2.29x71.63 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 2.82 - 5.74    Groove Width (W): 1.96 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06668-C (25 Pcs) Internal Retaining Rings - 66.68x2.29x71.63 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$785.50 AUD
$785.50 AUD
Per 25
View the product page first if you are unsure.
Housing Bore (B)
68.00
mm

(2.677 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
73.05
mm
+/- 0.08
(2.876 in.)
Approx. Loose Circlip OD (Dr)
74.93
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.87 - 5.84
Groove Width (W)
1.96
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 68x2.29x73.05 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I108
Part Number: CIB-06800-C Internal Retaining Rings - 68x2.29x73.05 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
68.00
mm

(2.677 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
73.05
mm
+/- 0.08
(2.876 in.)
Approx. Loose Circlip OD (Dr)
74.93
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 68x2.29x73.05 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 2.87 - 5.84    Groove Width (W): 1.96 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06800-C Internal Retaining Rings - 68x2.29x73.05 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
68.26
mm

(2.687 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
73.33
mm
+/- 0.08
(2.887 in.)
Approx. Loose Circlip OD (Dr)
74.93
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.87 - 5.84
Groove Width (W)
1.96
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 68.26x2.29x73.33 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-06826-C (2 Pcs) Internal Retaining Rings - 68.26x2.29x73.33 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$19.05 AUD
$19.05 AUD
Per 2
Housing Bore (B)
68.26
mm

(2.687 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
73.33
mm
+/- 0.08
(2.887 in.)
Approx. Loose Circlip OD (Dr)
74.93
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 68.26x2.29x73.33 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.87 - 5.84    Groove Width (W): 1.96 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06826-C (2 Pcs) Internal Retaining Rings - 68.26x2.29x73.33 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$19.05 AUD
$19.05 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
69.85
mm

(2.75 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
75.06
mm
+/- 0.08
(2.955 in.)
Approx. Loose Circlip OD (Dr)
76.71
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.92 - 5.94
Groove Width (W)
1.93
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 69.85x2.29x75.06 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-06985-C Internal Retaining Rings - 69.85x2.29x75.06 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$13.50 AUD
$13.50 AUD
Each
Housing Bore (B)
69.85
mm

(2.75 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
75.06
mm
+/- 0.08
(2.955 in.)
Approx. Loose Circlip OD (Dr)
76.71
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 69.85x2.29x75.06 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.92 - 5.94    Groove Width (W): 1.93 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-06985-C Internal Retaining Rings - 69.85x2.29x75.06 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$13.50 AUD
$13.50 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
71.42
mm

(2.812 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
76.71
mm
+/- 0.08
(3.02 in.)
Approx. Loose Circlip OD (Dr)
78.51
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.92 - 5.84
Groove Width (W)
1.93
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 71.42x2.29x76.71 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-07142-C (2 Pcs) Internal Retaining Rings - 71.42x2.29x76.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.32 AUD
$20.32 AUD
Per 2
Housing Bore (B)
71.42
mm

(2.812 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
76.71
mm
+/- 0.08
(3.02 in.)
Approx. Loose Circlip OD (Dr)
78.51
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 71.42x2.29x76.71 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 2.92 - 5.84    Groove Width (W): 1.93 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-07142-C (2 Pcs) Internal Retaining Rings - 71.42x2.29x76.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.32 AUD
$20.32 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
72.01
mm

(2.835 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
77.29
mm
+/- 0.08
(3.043 in.)
Approx. Loose Circlip OD (Dr)
78.51
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
2.92 - 5.84
Groove Width (W)
1.93
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 72.01x2.29x77.29 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I108
Part Number: CIB-07201-C Internal Retaining Rings - 72.01x2.29x77.29 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
72.01
mm

(2.835 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
77.29
mm
+/- 0.08
(3.043 in.)
Approx. Loose Circlip OD (Dr)
78.51
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 72.01x2.29x77.29 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 2.92 - 5.84    Groove Width (W): 1.93 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-07201-C Internal Retaining Rings - 72.01x2.29x77.29 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
73.03
mm

(2.875 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
78.36
mm
+/- 0.08
(3.085 in.)
Approx. Loose Circlip OD (Dr)
80.29
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
3.05 - 6.10
Groove Width (W)
1.93
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 73.03x2.29x78.36 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-07303-C (2 Pcs) Internal Retaining Rings - 73.03x2.29x78.36 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$21.05 AUD
$21.05 AUD
Per 2
Housing Bore (B)
73.03
mm

(2.875 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
78.36
mm
+/- 0.08
(3.085 in.)
Approx. Loose Circlip OD (Dr)
80.29
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 73.03x2.29x78.36 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 3.05 - 6.10    Groove Width (W): 1.93 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-07303-C (2 Pcs) Internal Retaining Rings - 73.03x2.29x78.36 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$21.05 AUD
$21.05 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
75.01
mm

(2.953 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
80.72
mm
+/- 0.08
(3.178 in.)
Approx. Loose Circlip OD (Dr)
83.69
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
3.10 - 6.35
Groove Width (W)
1.88
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 75.01x2.29x80.72 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I108
Part Number: CIB-07501-C Internal Retaining Rings - 75.01x2.29x80.72 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
75.01
mm

(2.953 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
80.72
mm
+/- 0.08
(3.178 in.)
Approx. Loose Circlip OD (Dr)
83.69
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 75.01x2.29x80.72 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 3.10 - 6.35    Groove Width (W): 1.88 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-07501-C Internal Retaining Rings - 75.01x2.29x80.72 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
76.20
mm

(3 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
81.92
mm
+/- 0.08
(3.225 in.)
Approx. Loose Circlip OD (Dr)
83.69
mm
+ 1.78 / - 0.00
Radial Wall (S) min/max
3.10 - 6.35
Groove Width (W)
1.88
mm
+ 0.04 / - 0.00
Internal Retaining Rings - 76.2x2.29x81.92 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I108
Part Number: CIB-07620-C (2 Pcs) Internal Retaining Rings - 76.2x2.29x81.92 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$22.59 AUD
$22.59 AUD
Per 2
Housing Bore (B)
76.20
mm

(3 in.)
Clip Thickness (T)
2.29
mm
+ 0.15 / - 0.00
(0.09 in.)
Groove Dia. (Dg)
81.92
mm
+/- 0.08
(3.225 in.)
Approx. Loose Circlip OD (Dr)
83.69
mm
+ 1.78 / - 0.00
Internal Retaining Rings - 76.2x2.29x81.92 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 3.10 - 6.35    Groove Width (W): 1.88 mm + 0.04 / - 0.00   Tool: PRR-I108
Part Number: CIB-07620-C (2 Pcs) Internal Retaining Rings - 76.2x2.29x81.92 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$22.59 AUD
$22.59 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
77.79
mm

(3.063 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
83.57
mm
+/- 0.08
(3.29 in.)
Approx. Loose Circlip OD (Dr)
85.42
mm
+ 2.80 / - 0.00
Radial Wall (S) min/max
3.20 - 6.45
Groove Width (W)
2.26
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 77.79x2.69x83.57 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I120
Part Number: CIB-07779-C Internal Retaining Rings - 77.79x2.69x83.57 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 12, 2025
$21.14 AUD
$21.14 AUD
Each
Housing Bore (B)
77.79
mm

(3.063 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
83.57
mm
+/- 0.08
(3.29 in.)
Approx. Loose Circlip OD (Dr)
85.42
mm
+ 2.80 / - 0.00
Internal Retaining Rings - 77.79x2.69x83.57 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 3.20 - 6.45    Groove Width (W): 2.26 mm + 0.05 / - 0.00   Tool: PRR-I120
Part Number: CIB-07779-C Internal Retaining Rings - 77.79x2.69x83.57 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 12, 2025
$21.14 AUD
$21.14 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
79.38
mm

(3.125 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
85.22
mm
+/- 0.08
(3.355 in.)
Approx. Loose Circlip OD (Dr)
87.20
mm
+ 2.80 / - 0.00
Radial Wall (S) min/max
3.28 - 6.58
Groove Width (W)
2.26
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 79.38x2.69x85.22 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I120
Part Number: CIB-07938-C (30 Pcs) Internal Retaining Rings - 79.38x2.69x85.22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$575.14 AUD
$575.14 AUD
Per 30
Housing Bore (B)
79.38
mm

(3.125 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
85.22
mm
+/- 0.08
(3.355 in.)
Approx. Loose Circlip OD (Dr)
87.20
mm
+ 2.80 / - 0.00
Internal Retaining Rings - 79.38x2.69x85.22 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 3.28 - 6.58    Groove Width (W): 2.26 mm + 0.05 / - 0.00   Tool: PRR-I120
Part Number: CIB-07938-C (30 Pcs) Internal Retaining Rings - 79.38x2.69x85.22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$575.14 AUD
$575.14 AUD
Per 30
View the product page first if you are unsure.
Housing Bore (B)
79.98
mm

(3.149 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
85.88
mm
+/- 0.08
(3.381 in.)
Approx. Loose Circlip OD (Dr)
88.09
mm
+ 2.80 / - 0.00
Radial Wall (S) min/max
3.28 - 6.65
Groove Width (W)
2.26
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 79.98x2.69x85.88 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I120
Part Number: CIB-07998-C Internal Retaining Rings - 79.98x2.69x85.88 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
79.98
mm

(3.149 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
85.88
mm
+/- 0.08
(3.381 in.)
Approx. Loose Circlip OD (Dr)
88.09
mm
+ 2.80 / - 0.00
Internal Retaining Rings - 79.98x2.69x85.88 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 3.28 - 6.65    Groove Width (W): 2.26 mm + 0.05 / - 0.00   Tool: PRR-I120
Part Number: CIB-07998-C Internal Retaining Rings - 79.98x2.69x85.88 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B)
80.17
mm

(3.156 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
98.55
mm
+/- 0.08
(3.88 in.)
Approx. Loose Circlip OD (Dr)
88.09
mm
+ 2.80 / - 0.00
Radial Wall (S) min/max
3.28 - 6.65
Groove Width (W)
2.26
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 80.17x2.69x98.55 mm - Carbon Steel
Material: Carbon Steel    Tool: PRR-I120
Part Number: CIB-08017-C Internal Retaining Rings - 80.17x2.69x98.55 mm - Carbon Steel
13 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025
$17.77 AUD
$17.77 AUD
Each
Housing Bore (B)
80.17
mm

(3.156 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
98.55
mm
+/- 0.08
(3.88 in.)
Approx. Loose Circlip OD (Dr)
88.09
mm
+ 2.80 / - 0.00
Internal Retaining Rings - 80.17x2.69x98.55 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) min/max: 3.28 - 6.65    Groove Width (W): 2.26 mm + 0.05 / - 0.00   Tool: PRR-I120
Part Number: CIB-08017-C Internal Retaining Rings - 80.17x2.69x98.55 mm - Carbon Steel
13 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025
$17.77 AUD
$17.77 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
82.55
mm

(3.25 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
88.62
mm
+/- 0.08
(3.489 in.)
Approx. Loose Circlip OD (Dr)
90.63
mm
+ 2.80 / - 0.00
Radial Wall (S) min/max
3.43 - 6.83
Groove Width (W)
2.26
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 82.55x2.69x88.62 mm - Spring Steel
Material: Spring Steel    Tool: PRR-I120
Part Number: CIB-08255-C (13 Pcs) Internal Retaining Rings - 82.55x2.69x88.62 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$274.32 AUD
$274.32 AUD
Per 13
Housing Bore (B)
82.55
mm

(3.25 in.)
Clip Thickness (T)
2.69
mm
+ 0.15 / - 0.00
(0.106 in.)
Groove Dia. (Dg)
88.62
mm
+/- 0.08
(3.489 in.)
Approx. Loose Circlip OD (Dr)
90.63
mm
+ 2.80 / - 0.00
Internal Retaining Rings - 82.55x2.69x88.62 mm - Spring Steel
Material: Spring Steel    Radial Wall (S) min/max: 3.43 - 6.83    Groove Width (W): 2.26 mm + 0.05 / - 0.00   Tool: PRR-I120
Part Number: CIB-08255-C (13 Pcs) Internal Retaining Rings - 82.55x2.69x88.62 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$274.32 AUD
$274.32 AUD
Per 13
View the product page first if you are unsure.
