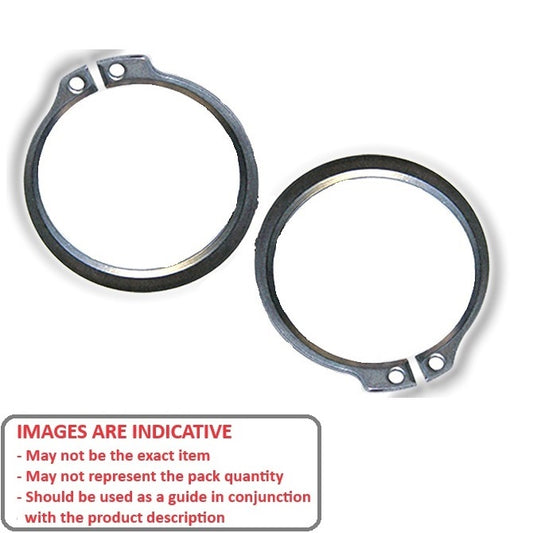

Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
145.00
mm (5.709 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (0.197 in.) |
Groove Dia. (Dg)
141.00
mm + 0.00 / - 0.12 (5.551 in.) |
Approx. Loose Circlip ID (A)
138.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14500H-C External Retaining Rings - 145x5x141 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
145.00
mm (5.709 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (0.197 in.) |
Groove Dia. (Dg)
141.00
mm + 0.00 / - 0.12 (5.551 in.) |
Approx. Loose Circlip ID (A)
138.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14500H-C External Retaining Rings - 145x5x141 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
137.57
mm +/- 0.10 (5.416 in.) |
Approx. Loose Circlip ID (A)
136.04
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.59 - 10.36
mm |
Groove Width (W)
2.62
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-14605-C External Retaining Rings - 146.05x3.18x137.57 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|

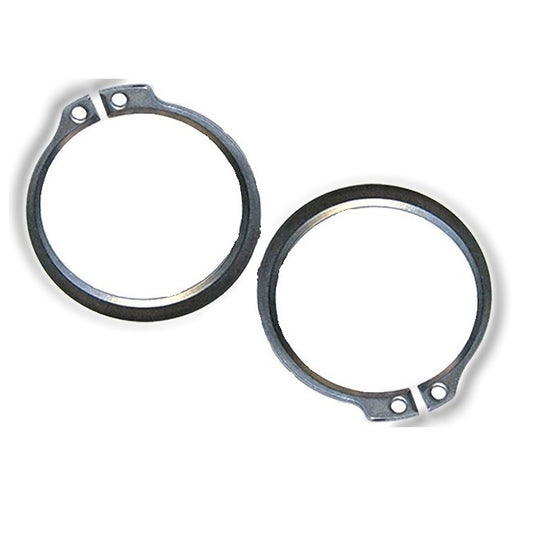

Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
137.57
mm +/- 0.10 (5.416 in.) |
Approx. Loose Circlip ID (A)
136.04
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 5.59 - 10.36 mm
Groove Width (W): 2.62 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-14605-C External Retaining Rings - 146.05x3.18x137.57 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (5.505 in.) |
Approx. Loose Circlip ID (A)
137.06
mm |
Groove Width (W)
3.53
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 163.32 mm
Clearance in Groove (C1): 169.67 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14605-C External Retaining Rings - 146.05x3.18x139.83 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$178.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (5.505 in.) |
Approx. Loose Circlip ID (A)
137.06
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.53 mm
Clearance on Shaft (C1): 163.32 mm
Clearance in Groove (C1): 169.67 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14605-C External Retaining Rings - 146.05x3.18x139.83 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$178.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|

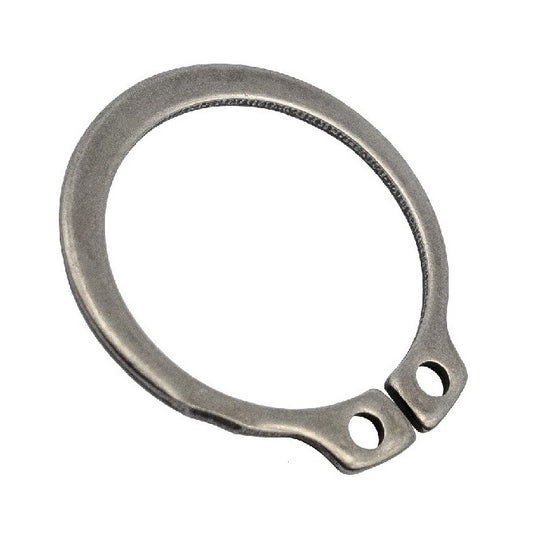

Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14605-S15 External Retaining Rings - 146.05x3.18x139.83 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$3,327.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14605-S15 External Retaining Rings - 146.05x3.18x139.83 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$3,327.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|

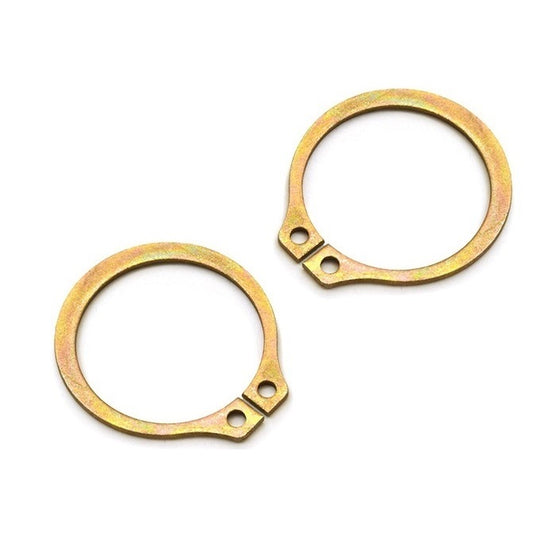

Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14605-CZY (3 Pcs) External Retaining Rings - 146.05x3.18x139.83 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$627.50 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14605-CZY (3 Pcs) External Retaining Rings - 146.05x3.18x139.83 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$627.50 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|

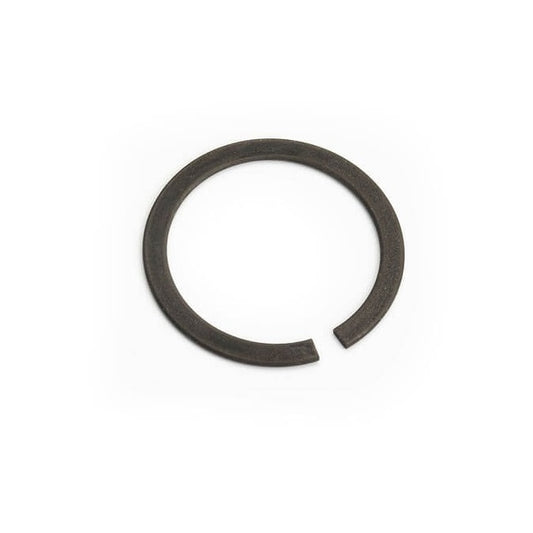

Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
139.85
mm +/- 0.15 (5.506 in.) |
Approx. Loose Circlip ID (A)
138.33
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 157.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1461-LS External Retaining Rings - 146.05x3.18x139.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
139.85
mm +/- 0.15 (5.506 in.) |
Approx. Loose Circlip ID (A)
138.33
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Clearance in Groove (C1): 157.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1461-LS External Retaining Rings - 146.05x3.18x139.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
147.00
mm (5.787 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
143.00
mm + 0.00 / - 0.10 (5.63 in.) |
Approx. Loose Circlip ID (A)
140.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14700-C External Retaining Rings - 147x4x143 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
147.00
mm (5.787 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
143.00
mm + 0.00 / - 0.10 (5.63 in.) |
Approx. Loose Circlip ID (A)
140.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14700-C External Retaining Rings - 147x4x143 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
148.00
mm (5.827 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
143.37
mm + 0.00 / - 0.10 (5.644 in.) |
Approx. Loose Circlip ID (A)
140.63
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14800-C External Retaining Rings - 148x4x143.37 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
148.00
mm (5.827 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
143.37
mm + 0.00 / - 0.10 (5.644 in.) |
Approx. Loose Circlip ID (A)
140.63
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-14800-C External Retaining Rings - 148x4x143.37 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
149.86
mm (5.9 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
143.66
mm +/- 0.15 (5.656 in.) |
Approx. Loose Circlip ID (A)
142.24
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 161.3 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1499-LS External Retaining Rings - 149.86x3.18x143.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
149.86
mm (5.9 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
143.66
mm +/- 0.15 (5.656 in.) |
Approx. Loose Circlip ID (A)
142.24
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Clearance in Groove (C1): 161.3 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1499-LS External Retaining Rings - 149.86x3.18x143.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|

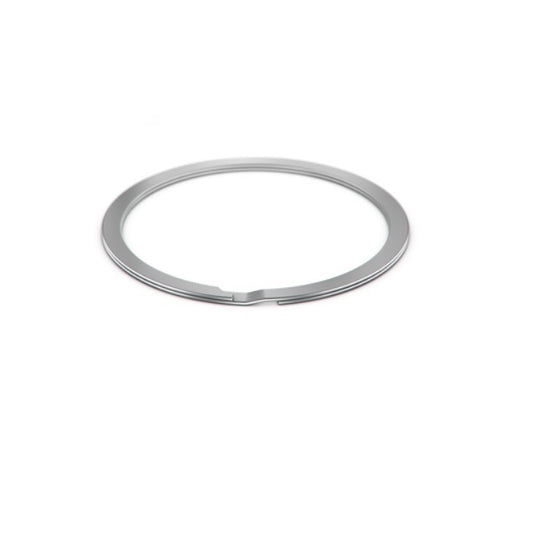

Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
147.40
mm + 0 / - 0.25 (5.803 in.) |
Approx. Loose Circlip ID (A)
145.90
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 153.9 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1500-LS External Retaining Rings - 150x2.5x147.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (0.098 in.) |
Groove Dia. (Dg)
147.40
mm + 0 / - 0.25 (5.803 in.) |
Approx. Loose Circlip ID (A)
145.90
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 153.9 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1500-LS External Retaining Rings - 150x2.5x147.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15000-C External Retaining Rings - 150x4x145 mm - Carbon Steel
1 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$23.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15000-C External Retaining Rings - 150x4x145 mm - Carbon Steel
1 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$23.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15000-S15 External Retaining Rings - 150x4x145 mm - Stainless Steel Grade PH15-7 Mo
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15000-S15 External Retaining Rings - 150x4x145 mm - Stainless Steel Grade PH15-7 Mo
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (0.197 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.12 (5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15000H-C External Retaining Rings - 150x5x145 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (5.906 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (0.197 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.12 (5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15000H-C External Retaining Rings - 150x5x145 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.00
mm (5.984 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
147.00
mm + 0.00 / - 0.10 (5.787 in.) |
Approx. Loose Circlip ID (A)
143.63
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15200-C External Retaining Rings - 152x4x147 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.00
mm (5.984 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
147.00
mm + 0.00 / - 0.10 (5.787 in.) |
Approx. Loose Circlip ID (A)
143.63
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15200-C External Retaining Rings - 152x4x147 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (0.072 in.) |
Groove Dia. (Dg)
148.52
mm (5.847 in.) |
Approx. Loose Circlip ID (A)
143.26
mm + 0.00 / - 1.27 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.17 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 155.96 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-600 (5 Pcs) External Retaining Rings - 152.4x1.83x148.52 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$26.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (0.072 in.) |
Groove Dia. (Dg)
148.52
mm (5.847 in.) |
Approx. Loose Circlip ID (A)
143.26
mm + 0.00 / - 1.27 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.17
Clearance in Groove (C1): 155.96 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-600 (5 Pcs) External Retaining Rings - 152.4x1.83x148.52 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$26.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
148.34
mm +/- 0.20 (5.84 in.) |
Approx. Loose Circlip ID (A)
146.69
mm - 0.00 / + 3.20 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 159.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1524-LS-L External Retaining Rings - 152.4x2.36x148.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
148.34
mm +/- 0.20 (5.84 in.) |
Approx. Loose Circlip ID (A)
146.69
mm - 0.00 / + 3.20 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 159.39 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1524-LS-L External Retaining Rings - 152.4x2.36x148.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
143.54
mm +/- 0.10 (5.651 in.) |
Approx. Loose Circlip ID (A)
142.01
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
4.34 - 9.68
mm |
Groove Width (W)
2.59
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-15240-C External Retaining Rings - 152.4x3.18x143.54 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,082.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (0.125 in.) |
Groove Dia. (Dg)
143.54
mm +/- 0.10 (5.651 in.) |
Approx. Loose Circlip ID (A)
142.01
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 4.34 - 9.68 mm
Groove Width (W): 2.59 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-15240-C External Retaining Rings - 152.4x3.18x143.54 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Thu, Aug 07, 2025 Regular price
$1,082.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15240-CZY External Retaining Rings - 152.4x3.18x145.92 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$248.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15240-CZY External Retaining Rings - 152.4x3.18x145.92 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$248.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15240-S15 External Retaining Rings - 152.4x3.18x145.92 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$1,666.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15240-S15 External Retaining Rings - 152.4x3.18x145.92 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$1,666.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (5.745 in.) |
Approx. Loose Circlip ID (A)
143.03
mm |
Groove Width (W)
3.53
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 169.42 mm
Clearance in Groove (C1): 176.02 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15240-C External Retaining Rings - 152.4x3.18x145.92 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$207.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (5.745 in.) |
Approx. Loose Circlip ID (A)
143.03
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.53 mm
Clearance on Shaft (C1): 169.42 mm
Clearance in Groove (C1): 176.02 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15240-C External Retaining Rings - 152.4x3.18x145.92 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$207.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
145.95
mm +/- 0.15 (5.746 in.) |
Approx. Loose Circlip ID (A)
144.45
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 163.51 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1524-LS External Retaining Rings - 152.4x3.18x145.95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.40
mm (6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (0.125 in.) |
Groove Dia. (Dg)
145.95
mm +/- 0.15 (5.746 in.) |
Approx. Loose Circlip ID (A)
144.45
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Clearance in Groove (C1): 163.51 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1524-LS External Retaining Rings - 152.4x3.18x145.95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
155.00
mm (6.102 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (0.197 in.) |
Groove Dia. (Dg)
150.00
mm + 0.00 / - 0.12 (5.906 in.) |
Approx. Loose Circlip ID (A)
146.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15500H-C External Retaining Rings - 155x5x150 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
155.00
mm (6.102 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (0.197 in.) |
Groove Dia. (Dg)
150.00
mm + 0.00 / - 0.12 (5.906 in.) |
Approx. Loose Circlip ID (A)
146.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15500H-C External Retaining Rings - 155x5x150 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
157.00
mm (6.181 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
152.00
mm + 0.00 / - 0.10 (5.984 in.) |
Approx. Loose Circlip ID (A)
148.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15700-C External Retaining Rings - 157x4x152 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
157.00
mm (6.181 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
152.00
mm + 0.00 / - 0.10 (5.984 in.) |
Approx. Loose Circlip ID (A)
148.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15700-C External Retaining Rings - 157x4x152 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
158.00
mm (6.22 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
153.00
mm + 0.00 / - 0.10 (6.024 in.) |
Approx. Loose Circlip ID (A)
148.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15800-C External Retaining Rings - 158x4x153 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
158.00
mm (6.22 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (0.157 in.) |
Groove Dia. (Dg)
153.00
mm + 0.00 / - 0.10 (6.024 in.) |
Approx. Loose Circlip ID (A)
148.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-15800-C External Retaining Rings - 158x4x153 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
