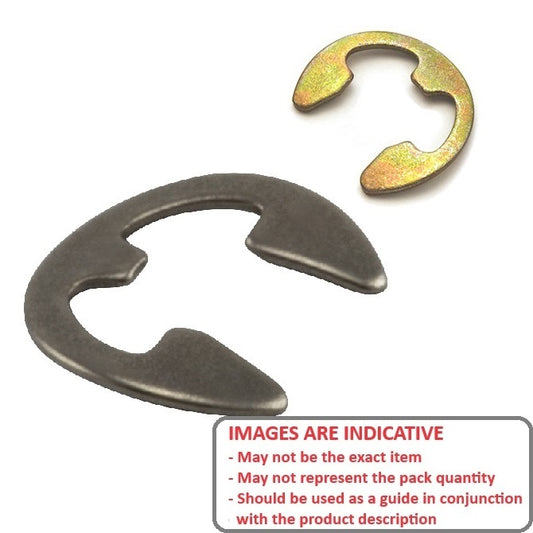

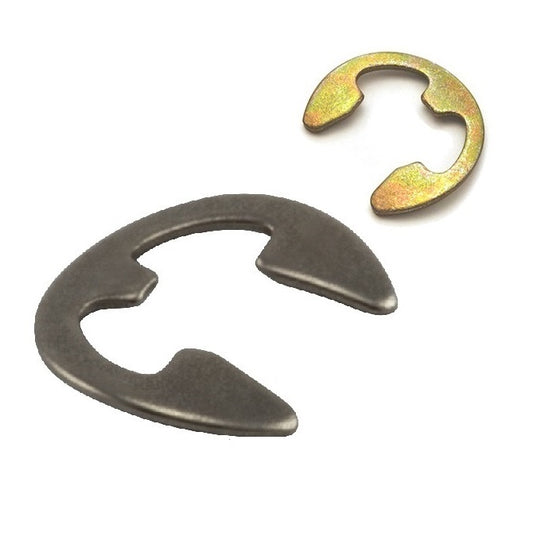

Retaining Rings - E-Clips - Bowed

25 Products in this selection
  • For end play take up.
  • Thickness tolerance +/- 0.025.
Additional resources:
A more concise listing may be found on the Smallparts store at Retaining Rings - E-Clips - Bowed. Smallparts promote the most popular MBA products.
Minimum Rec. Shaft Dia (S) Groove Dia. (Dg) Clip Thickness (T) Clip OD Loose (D1) Groove Width (W) Indicative
Minimum Rec. Shaft Dia (S)
24.99
mm
Groove Dia. (Dg)
21.21
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.27
mm
+/ - 0.051
Clip OD Loose (D1)
38.10
mm
Groove Width (W)
1.45
mm
1130414 | ECB-0212-0250-C (250 Pcs) --- E-Clips Retaining Rings - 24.99x21.21x1.27 mm - Carbon Steel
Material: Carbon Steel    Ring Width (X): 2.16 mm    Force Required to Flatten: 58.8 kg
Part Number: ECB-0212-0250-C (250 Pcs) E-Clips Retaining Rings - 24.99x21.21x1.27 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Aug 04, 2025
$606.14 AUD
$606.14 AUD
Per 250
Minimum Rec. Shaft Dia (S) Groove Dia. (Dg) Clip Thickness (T) Clip OD Loose (D1) Indicative
Minimum Rec. Shaft Dia (S)
24.99
mm
Groove Dia. (Dg)
21.21
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.27
mm
+/ - 0.051
Clip OD Loose (D1)
38.10
mm
1130414 | ECB-0212-0250-C (250 Pcs) --- E-Clips Retaining Rings - 24.99x21.21x1.27 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.45 mm    Ring Width (X): 2.16 mm    Force Required to Flatten: 58.8 kg
Part Number: ECB-0212-0250-C (250 Pcs) E-Clips Retaining Rings - 24.99x21.21x1.27 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Aug 04, 2025
$606.14 AUD
$606.14 AUD
Per 250
View the product page first if you are unsure.
