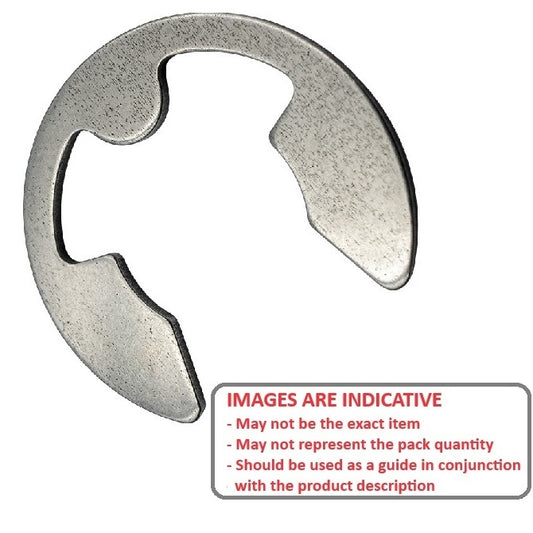

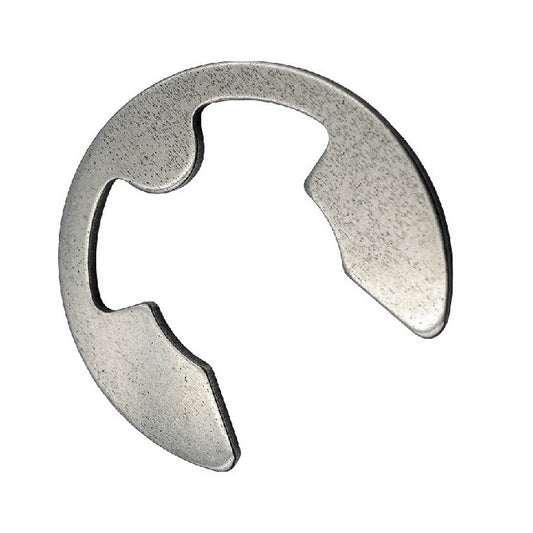

Retaining Rings - E-Clips - Basic - Stainless Steel

29 Products in this selection
  • Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
  • Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Additional resources:
E-Clip Applicators
A more concise listing may be found on the Smallparts store at Retaining Rings - E-Clips - Basic - Stainless Steel. Smallparts promote the most popular MBA products.
Minimum Rec. Shaft Dia (S) Groove Dia. (Dg) Clip Thickness (T) Clip OD Loose (D1) Groove Width (W) Indicative
Minimum Rec. Shaft Dia (S)
12.70
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
10.06
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.07
mm
+/ - 0.050
Clip OD Loose (D1)
20.32
mm
Groove Width (W)
1.17
mm
E-Clips Retaining Rings - 12.7x10.06x1.07 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Maximum Rec. Shaft Dia (S): 15.75    Clip OD in groove (C1): 20.83 mm    Loose Clip ID (A): 9.96 mm    Min. Extension (n): 2.00    Additional Info: RRA-200 Applicator    Standard: MIL-16633
Part Number: ECL-0101-0127-S15 (10 Pcs) E-Clips Retaining Rings - 12.7x10.06x1.07 mm - Stainless Steel Grade PH15-7 Mo
14 units (140 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025
$16.95 AUD
$16.95 AUD
Per 10
Minimum Rec. Shaft Dia (S) Groove Dia. (Dg) Clip Thickness (T) Clip OD Loose (D1) Indicative
Minimum Rec. Shaft Dia (S)
12.70
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
10.06
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.07
mm
+/ - 0.050
Clip OD Loose (D1)
20.32
mm
E-Clips Retaining Rings - 12.7x10.06x1.07 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm    Maximum Rec. Shaft Dia (S): 15.75    Clip OD in groove (C1): 20.83 mm    Loose Clip ID (A): 9.96 mm    Min. Extension (n): 2.00    Additional Info: RRA-200 Applicator    Standard: MIL-16633
Part Number: ECL-0101-0127-S15 (10 Pcs) E-Clips Retaining Rings - 12.7x10.06x1.07 mm - Stainless Steel Grade PH15-7 Mo
14 units (140 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025
$16.95 AUD
$16.95 AUD
Per 10
View the product page first if you are unsure.
Minimum Rec. Shaft Dia (S)
13.00
mm
+ 5.00 / - 0.00
Groove Dia. (Dg)
12.00
mm
+ 0.00 / - 0.11
Clip Thickness (T)
1.30
mm
+/ - 0.03
Clip OD Loose (D1)
22.65
mm
Groove Width (W)
1.35
mm
1104089 | ECL-0120-0130-S15 --- E-Clips Retaining Rings - 13x12x1.3 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Maximum Rec. Shaft Dia (S): 18.00    Clip OD in groove (C1): 23.40 mm    Loose Clip ID (A): 10.45 mm    Min. Extension (n): 2.50
Part Number: ECL-0120-0130-S15 E-Clips Retaining Rings - 13x12x1.3 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 11, 2025
$13.32 AUD
$13.32 AUD
Each
Minimum Rec. Shaft Dia (S)
13.00
mm
+ 5.00 / - 0.00
Groove Dia. (Dg)
12.00
mm
+ 0.00 / - 0.11
Clip Thickness (T)
1.30
mm
+/ - 0.03
Clip OD Loose (D1)
22.65
mm
1104089 | ECL-0120-0130-S15 --- E-Clips Retaining Rings - 13x12x1.3 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.35 mm    Maximum Rec. Shaft Dia (S): 18.00    Clip OD in groove (C1): 23.40 mm    Loose Clip ID (A): 10.45 mm    Min. Extension (n): 2.50
Part Number: ECL-0120-0130-S15 E-Clips Retaining Rings - 13x12x1.3 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 11, 2025
$13.32 AUD
$13.32 AUD
Each
View the product page first if you are unsure.
Minimum Rec. Shaft Dia (S)
15.88
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
12.32
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.07
mm
+/ - 0.050
Clip OD Loose (D1)
23.88
mm
Groove Width (W)
1.17
mm
1111378 | ECL-0123-0159-S15 (2 Pcs) --- E-Clips Retaining Rings - 15.88x12.32x1.07 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Maximum Rec. Shaft Dia (S): 18.93    Clip OD in groove (C1): 24.38 mm    Standard: MIL-16633
Part Number: ECL-0123-0159-S15 (2 Pcs) E-Clips Retaining Rings - 15.88x12.32x1.07 mm - Stainless Steel Grade PH15-7 Mo
104 units (208 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025
$9.14 AUD
$9.14 AUD
Per 2
Minimum Rec. Shaft Dia (S)
15.88
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
12.32
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.07
mm
+/ - 0.050
Clip OD Loose (D1)
23.88
mm
1111378 | ECL-0123-0159-S15 (2 Pcs) --- E-Clips Retaining Rings - 15.88x12.32x1.07 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm    Maximum Rec. Shaft Dia (S): 18.93    Clip OD in groove (C1): 24.38 mm    Standard: MIL-16633
Part Number: ECL-0123-0159-S15 (2 Pcs) E-Clips Retaining Rings - 15.88x12.32x1.07 mm - Stainless Steel Grade PH15-7 Mo
104 units (208 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025
$9.14 AUD
$9.14 AUD
Per 2
View the product page first if you are unsure.
Minimum Rec. Shaft Dia (S)
19.05
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
14.73
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.27
mm
+/ - 0.050
Clip OD Loose (D1)
28.45
mm
Groove Width (W)
1.42
mm
1119018 | ECL-0147-0191-S15 (3 Pcs) --- E-Clips Retaining Rings - 19.05x14.73x1.27 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Maximum Rec. Shaft Dia (S): 22.10    Clip OD in groove (C1): 28.96 mm    Standard: MIL-16633
Part Number: ECL-0147-0191-S15 (3 Pcs) E-Clips Retaining Rings - 19.05x14.73x1.27 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sat, May 31, 2025
$17.05 AUD
$17.05 AUD
Per 3
Minimum Rec. Shaft Dia (S)
19.05
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
14.73
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.27
mm
+/ - 0.050
Clip OD Loose (D1)
28.45
mm
1119018 | ECL-0147-0191-S15 (3 Pcs) --- E-Clips Retaining Rings - 19.05x14.73x1.27 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.42 mm    Maximum Rec. Shaft Dia (S): 22.10    Clip OD in groove (C1): 28.96 mm    Standard: MIL-16633
Part Number: ECL-0147-0191-S15 (3 Pcs) E-Clips Retaining Rings - 19.05x14.73x1.27 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sat, May 31, 2025
$17.05 AUD
$17.05 AUD
Per 3
View the product page first if you are unsure.
Minimum Rec. Shaft Dia (S)
22.23
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
17.15
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.27
mm
+/ - 0.050
Clip OD Loose (D1)
33.02
mm
Groove Width (W)
1.42
mm
1127873 | ECL-0171-0222-S15 (3 Pcs) --- E-Clips Retaining Rings - 22.23x17.15x1.27 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Maximum Rec. Shaft Dia (S): 25.28    Clip OD in groove (C1): 33.53 mm    Standard: MIL-16633
Part Number: ECL-0171-0222-S15 (3 Pcs) E-Clips Retaining Rings - 22.23x17.15x1.27 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sat, May 31, 2025
$24.05 AUD
$24.05 AUD
Per 3
Minimum Rec. Shaft Dia (S)
22.23
mm
+ 3.05 / - 0.00
Groove Dia. (Dg)
17.15
mm
+ 0.076 / - 0.000
Clip Thickness (T)
1.27
mm
+/ - 0.050
Clip OD Loose (D1)
33.02
mm
1127873 | ECL-0171-0222-S15 (3 Pcs) --- E-Clips Retaining Rings - 22.23x17.15x1.27 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.42 mm    Maximum Rec. Shaft Dia (S): 25.28    Clip OD in groove (C1): 33.53 mm    Standard: MIL-16633
Part Number: ECL-0171-0222-S15 (3 Pcs) E-Clips Retaining Rings - 22.23x17.15x1.27 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sat, May 31, 2025
$24.05 AUD
$24.05 AUD
Per 3
View the product page first if you are unsure.
