Collection: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Pins (With Images)

Dowel

Standard

Chamfered Ends

252 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Precision Dowel Pins - 303/304 Grade Stainless - Based on DIN6325, ISO2338, ISO 8734
Note! Type 2 pins may be supplied in lieu of type 1 pins.

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more concise listing may be found on the Smallparts store at Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless. Smallparts promote the most popular MBA products.

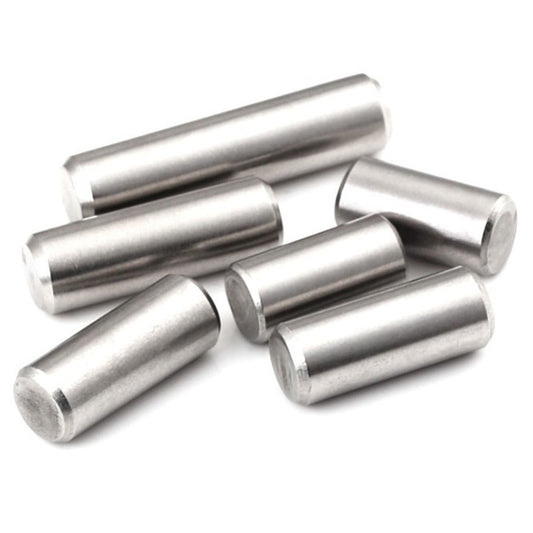

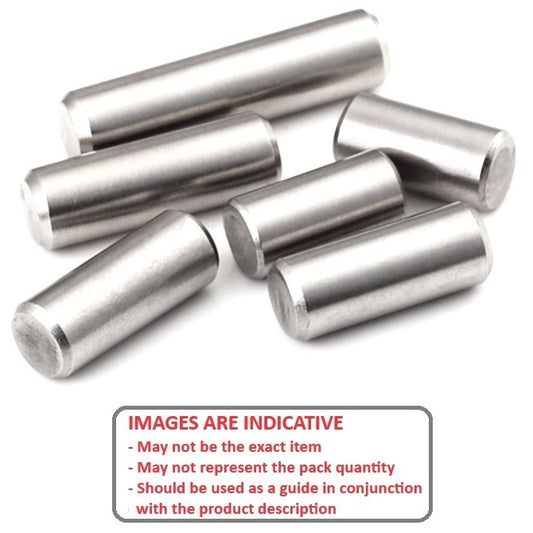

Diameter (D)	Length (L)	Approx. Overall Length	Type	Indicative Image
Diameter (D) 5.000 mm + 0.004 / + 0.012	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.80 x 15 Deg Standard: Based on ISO 2338
Part Number: DP050-030-303-2 Dowel Pins - 5x30x30 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 5.000 mm + 0.004 / + 0.012	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.80 x 15 Deg Standard: Based on ISO 2338
Part Number: DP050-030-303-2 Dowel Pins - 5x30x30 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 5.000 mm + 0.004 / + 0.012	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.80 x 15 Deg Standard: Based on ISO 2338
Part Number: DP050-032-303-2 Dowel Pins - 5x32x32 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 5.000 mm + 0.004 / + 0.012	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.80 x 15 Deg Standard: Based on ISO 2338
Part Number: DP050-032-303-2 Dowel Pins - 5x32x32 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 6.00 mm +/- 0.254	Approx. Overall Length 6.00 mm +/ - 0.254	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-006-303-2 Dowel Pins - 6x6x6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 6.00 mm +/- 0.254	Approx. Overall Length 6.00 mm +/ - 0.254
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-006-303-2 Dowel Pins - 6x6x6 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 12.00 mm +/- 0.350	Approx. Overall Length 12.00 mm +/ - 0.350	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-012-303-2 Dowel Pins - 6x12x12 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 12.00 mm +/- 0.350	Approx. Overall Length 12.00 mm +/ - 0.350
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-012-303-2 Dowel Pins - 6x12x12 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 18.00 mm +/- 0.420	Approx. Overall Length 18.00 mm +/ - 0.420	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-018-303-2 Dowel Pins - 6x18x18 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 18.00 mm +/- 0.420	Approx. Overall Length 18.00 mm +/ - 0.420
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-018-303-2 Dowel Pins - 6x18x18 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 8.00 mm +/- 0.254	Approx. Overall Length 8.00 mm +/ - 0.254	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-008-303-2 (2 Pcs) Dowel Pins - 6x8x8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 25 units (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 19, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 8.00 mm +/- 0.254	Approx. Overall Length 8.00 mm +/ - 0.254
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-008-303-2 (2 Pcs) Dowel Pins - 6x8x8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 25 units (50 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 19, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 View the product page first if you are unsure.
DP060-008-303-2 (2 Pcs) --- Dowel Pins - 6x8x8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 DP060-008-303-2 (2 Pcs) --- Dowel Pins - 6x8x8 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 25 Available Now
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 24.00 mm +/- 0.420	Approx. Overall Length 24.00 mm +/ - 0.420	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-024-303-2 (2 Pcs) Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 835 units (1670 pcs) Available Immediately \| Further orders can be expected around Tue, Aug 05, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 24.00 mm +/- 0.420	Approx. Overall Length 24.00 mm +/ - 0.420
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-024-303-2 (2 Pcs) Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 835 units (1670 pcs) Available Immediately \| Further orders can be expected around Tue, Aug 05, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 2 View the product page first if you are unsure.
DP060-024-303-2 (2 Pcs) --- Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 DP060-024-303-2 (2 Pcs) --- Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 835 Available Now
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 10.00 mm +/- 0.350	Approx. Overall Length 10.00 mm +/ - 0.350	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-010-303-2 Dowel Pins - 6x10x10 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 10.00 mm +/- 0.350	Approx. Overall Length 10.00 mm +/ - 0.350
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-010-303-2 Dowel Pins - 6x10x10 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-030-303-2 (50 Pcs) Dowel Pins - 6x30x30 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $108.50 AUD Regular price Sale price $108.50 AUD Unit price per Per 50
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-030-303-2 (50 Pcs) Dowel Pins - 6x30x30 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $108.50 AUD Regular price Sale price $108.50 AUD Unit price per Per 50 View the product page first if you are unsure.
DP060-030-303-2 (50 Pcs) --- Dowel Pins - 6x30x30 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 DP060-030-303-2 (50 Pcs) --- Dowel Pins - 6x30x30 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $108.50 AUD Regular price Sale price $108.50 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-032-303-2 Dowel Pins - 6x32x32 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-032-303-2 Dowel Pins - 6x32x32 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 36.00 mm +/- 0.500	Approx. Overall Length 36.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-036-303-2 Dowel Pins - 6x36x36 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 36.00 mm +/- 0.500	Approx. Overall Length 36.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-036-303-2 Dowel Pins - 6x36x36 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 45.00 mm +/- 0.500	Approx. Overall Length 45.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-045-303-2 (5 Pcs) Dowel Pins - 6x45x45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 349 units (1745 pcs) Available Immediately \| Further orders can be expected around Tue, Aug 05, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 5
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 45.00 mm +/- 0.500	Approx. Overall Length 45.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-045-303-2 (5 Pcs) Dowel Pins - 6x45x45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 349 units (1745 pcs) Available Immediately \| Further orders can be expected around Tue, Aug 05, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 5 View the product page first if you are unsure.
DP060-045-303-2 (5 Pcs) --- Dowel Pins - 6x45x45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 DP060-045-303-2 (5 Pcs) --- Dowel Pins - 6x45x45 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per 349 Available Now
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 50.00 mm +/- 0.600	Approx. Overall Length 50.00 mm +/ - 0.600	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-050-303-2 Dowel Pins - 6x50x50 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 50.00 mm +/- 0.600	Approx. Overall Length 50.00 mm +/ - 0.600
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-050-303-2 Dowel Pins - 6x50x50 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 14.00 mm +/- 0.350	Approx. Overall Length 14.00 mm +/ - 0.350	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.2 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-014-303-2 (5 Pcs) Dowel Pins - 6x14x14 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 1550 units (7750 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 09, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 14.00 mm +/- 0.350	Approx. Overall Length 14.00 mm +/ - 0.350
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.2 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-014-303-2 (5 Pcs) Dowel Pins - 6x14x14 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 1550 units (7750 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 09, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5 View the product page first if you are unsure.
DP060-014-303-2 (5 Pcs) --- Dowel Pins - 6x14x14 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 DP060-014-303-2 (5 Pcs) --- Dowel Pins - 6x14x14 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 1550 Available Now
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 60.00 mm +/- 0.600	Approx. Overall Length 60.00 mm +/ - 0.600	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-060-303-2 Dowel Pins - 6x60x60 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 60.00 mm +/- 0.600	Approx. Overall Length 60.00 mm +/ - 0.600
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-060-303-2 Dowel Pins - 6x60x60 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 16.00 mm +/- 0.350	Approx. Overall Length 16.00 mm +/ - 0.350	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-016-303-2 Dowel Pins - 6x16x16 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 16.00 mm +/- 0.350	Approx. Overall Length 16.00 mm +/ - 0.350
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-016-303-2 Dowel Pins - 6x16x16 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 24.00 mm +/- 0.420	Approx. Overall Length 24.00 mm +/ - 0.420	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 0.50 x 15 Deg Notes: Small Chamfer 0.50mm Standard: Modified
Part Number: DP060-024-303-2-F05 (5 Pcs) Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 139 units (695 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 09, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 5
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 24.00 mm +/- 0.420	Approx. Overall Length 24.00 mm +/ - 0.420
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 0.50 x 15 Deg Notes: Small Chamfer 0.50mm Standard: Modified
Part Number: DP060-024-303-2-F05 (5 Pcs) Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 139 units (695 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 09, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 5 View the product page first if you are unsure.
DP060-024-303-2-F05 (5 Pcs) --- Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 DP060-024-303-2-F05 (5 Pcs) --- Dowel Pins - 6x24x24 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 139 Available Now
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 28.00 mm +/- 0.420	Approx. Overall Length 28.00 mm +/ - 0.420	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-028-303-2 Dowel Pins - 6x28x28 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 28.00 mm +/- 0.420	Approx. Overall Length 28.00 mm +/ - 0.420
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-028-303-2 Dowel Pins - 6x28x28 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 40.00 mm +/- 0.500	Approx. Overall Length 40.00 mm +/ - 0.500	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-040-303-2 Dowel Pins - 6x40x40 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 40.00 mm +/- 0.500	Approx. Overall Length 40.00 mm +/ - 0.500
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-040-303-2 Dowel Pins - 6x40x40 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 55.00 mm +/- 0.600	Approx. Overall Length 55.00 mm +/ - 0.600	Type 2 (Chamfer Both Ends)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-055-303-2 (5 Pcs) Dowel Pins - 6x55x55 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 163 units (815 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Per 5
Diameter (D) 6.000 mm + 0.006 / + 0.015	Length (L) 55.00 mm +/- 0.600	Approx. Overall Length 55.00 mm +/ - 0.600
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 2 (Chamfer Both Ends) Chamfer: 1.20 x 15 Deg Standard: Based on ISO 2338
Part Number: DP060-055-303-2 (5 Pcs) Dowel Pins - 6x55x55 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 163 units (815 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Per 5
DP060-055-303-2 (5 Pcs) --- Dowel Pins - 6x55x55 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Sale DP060-055-303-2 (5 Pcs) --- Dowel Pins - 6x55x55 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per 163 Available Now Sale

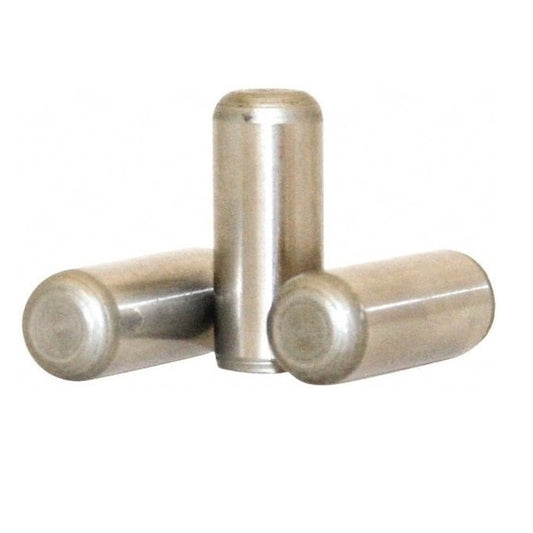

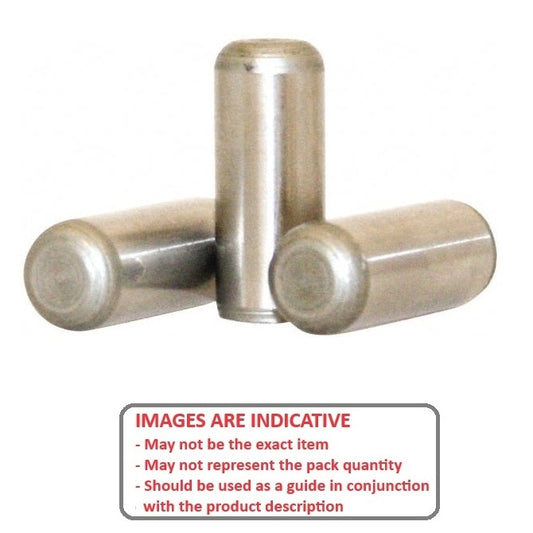

Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 12.70 mm +/- 0.350	Approx. Overall Length 12.70 mm +/ - 0.350	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-013-303-1 (10 Pcs) Dowel Pins - 6.35x12.7x12.7 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 3 units (30 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 12.70 mm +/- 0.350	Approx. Overall Length 12.70 mm +/ - 0.350
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-013-303-1 (10 Pcs) Dowel Pins - 6.35x12.7x12.7 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 3 units (30 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10
DP064-013-303-1 (10 Pcs) --- Dowel Pins - 6.35x12.7x12.7 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Sale DP064-013-303-1 (10 Pcs) --- Dowel Pins - 6.35x12.7x12.7 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 3 Available Now Sale
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 15.88 mm +/- 0.350	Approx. Overall Length 15.88 mm +/ - 0.350	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-016-303-1 (15 Pcs) Dowel Pins - 6.35x15.88x15.88 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 15.88 mm +/- 0.350	Approx. Overall Length 15.88 mm +/ - 0.350
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-016-303-1 (15 Pcs) Dowel Pins - 6.35x15.88x15.88 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 19.05 mm +/- 0.420	Approx. Overall Length 19.05 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-019-303-1 Dowel Pins - 6.35x19.05x19.05 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 19.05 mm +/- 0.420	Approx. Overall Length 19.05 mm +/ - 0.420
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-019-303-1 Dowel Pins - 6.35x19.05x19.05 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 22.23 mm +/- 0.420	Approx. Overall Length 22.23 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325
Part Number: DP064-022-303-1 Dowel Pins - 6.35x22.23x22.23 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 6.350 mm + 0.006 / + 0.015	Length (L) 22.23 mm +/- 0.420	Approx. Overall Length 22.23 mm +/ - 0.420
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Type: 1 (Chamfer One End) Chamfer: 1.20 x 15 Deg Standard: Based on DIN 6325

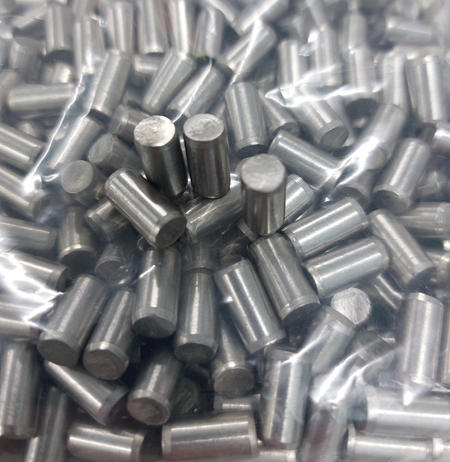

Part Number: DP064-022-303-1 Dowel Pins - 6.35x22.23x22.23 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
