Collection: Gears - Spur - Standard

Gears (With Images)

Spur

Stock 24DP Steel

552 Products in this selection

This is a combined category of Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
6DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image

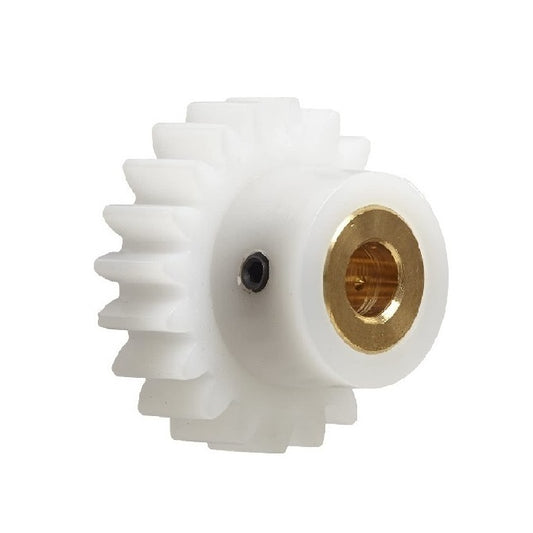

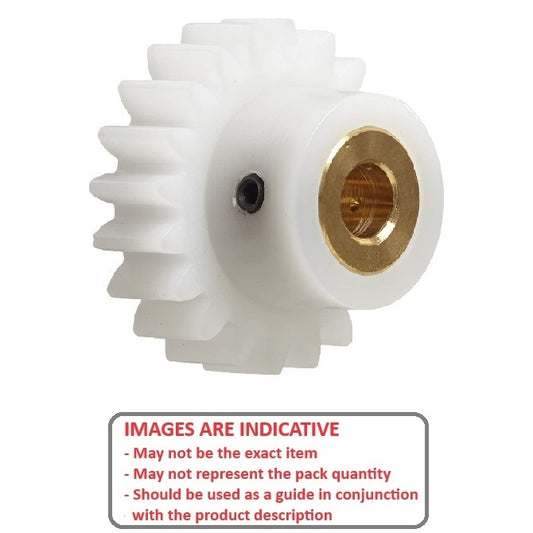

Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G017B-16-D24-064-048-AB-G Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G017B-16-D24-064-048-AB-G Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each View the product page first if you are unsure.
G017B-16-D24-064-048-AB-G --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert G017B-16-D24-064-048-AB-G --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G017B-16-D24-064-048-A-P Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G017B-16-D24-064-048-A-P Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G017B-16-D24-064-048-A-P --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal G017B-16-D24-064-048-A-P --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now

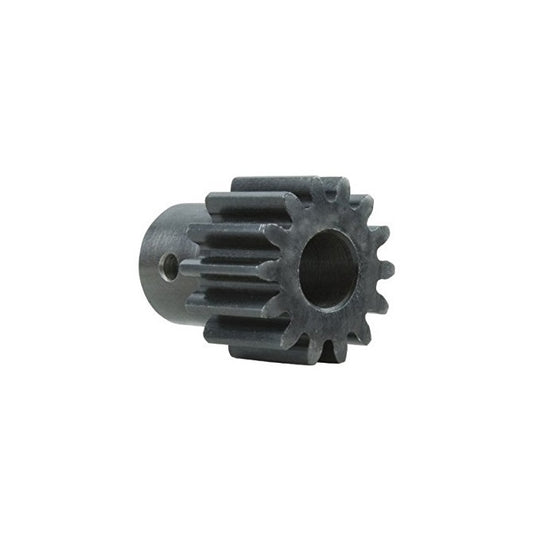

Teeth 16	Pitch Circle Diameter (PD) 16.942 mm _{(0.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 19.050 mm	Face Width (FW) 6.350 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 13.716 mm Hub Projection (HL): 7.874 mm Category: Gears - Spur - Standard - 24DP
Part Number: G017B-16-V24-064-079-CG Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $119.23 AUD Regular price Sale price $119.23 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.942 mm _{(0.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 19.050 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 6.350 mm Hub Diameter (D1): 13.716 mm Hub Projection (HL): 7.874 mm Category: Gears - Spur - Standard - 24DP
Part Number: G017B-16-V24-064-079-CG Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $119.23 AUD Regular price Sale price $119.23 AUD Unit price per Each View the product page first if you are unsure.
G017B-16-V24-064-079-CG --- Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment G017B-16-V24-064-079-CG --- Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $119.23 AUD Regular price Sale price $119.23 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 20.320 mm _{(0.8 in.)}	Bore (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (OD) 22.860 mm	Face Width (FW) 9.525 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 16.764 mm Hub Projection (HL): 9.652 mm Category: Gears - Spur - Standard - 20DP Steel
Part Number: G020B-16-V20-095-095-CG Spur Gears - 16 tooth - 20.32x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $129.14 AUD Regular price Sale price $129.14 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 20.320 mm _{(0.8 in.)}	Bore (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (OD) 22.860 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 9.525 mm Hub Diameter (D1): 16.764 mm Hub Projection (HL): 9.652 mm Category: Gears - Spur - Standard - 20DP Steel
Part Number: G020B-16-V20-095-095-CG Spur Gears - 16 tooth - 20.32x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $129.14 AUD Regular price Sale price $129.14 AUD Unit price per Each View the product page first if you are unsure.
G020B-16-V20-095-095-CG --- Spur Gears - 16 tooth - 20.32x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment G020B-16-V20-095-095-CG --- Spur Gears - 16 tooth - 20.32x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $129.14 AUD Regular price Sale price $129.14 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Outside Diameter (OD) 28.575 mm	Face Width (FW) 12.700 mm
Material: Steel Hub Diameter (D1): 20.574 mm Hub Projection (HL): 11.176 mm Category: Gears - Spur - Standard - 16DP
Part Number: G025B-16-V16-127-127-CG Spur Gears - 16 tooth - 25.4x12.7 mm - Steel 2 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $36.00 AUD Regular price ~~$68.40 AUD~~ Sale price $36.00 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Outside Diameter (OD) 28.575 mm
Material: Steel Face Width (FW): 12.700 mm Hub Diameter (D1): 20.574 mm Hub Projection (HL): 11.176 mm Category: Gears - Spur - Standard - 16DP
Part Number: G025B-16-V16-127-127-CG Spur Gears - 16 tooth - 25.4x12.7 mm - Steel 2 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $36.00 AUD Regular price ~~$68.40 AUD~~ Sale price $36.00 AUD Unit price per Each
G025B-16-V16-127-127-CG --- Spur Gears - 16 tooth - 25.4x12.7 mm - Steel Sale G025B-16-V16-127-127-CG --- Spur Gears - 16 tooth - 25.4x12.7 mm - Steel Regular price $36.00 AUD Regular price ~~$68.40 AUD~~ Sale price $36.00 AUD Unit price per 2 Available Now Sale
Teeth 16	Pitch Circle Diameter (PD) 50.800 mm _{(2 in.)}	Bore (d) 22.225 mm _{(0.875 in.)}	Outside Diameter (OD) 57.150 mm	Face Width (FW) 31.750 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 39.624 mm Hub Projection (HL): 19.050 mm Category: Gears - Spur - Standard - 8DP Steel
Part Number: G051B-16-V8-318-222-CG Spur Gears - 16 tooth - 50.8x22.225 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $350.14 AUD Regular price Sale price $350.14 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 50.800 mm _{(2 in.)}	Bore (d) 22.225 mm _{(0.875 in.)}	Outside Diameter (OD) 57.150 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 31.750 mm Hub Diameter (D1): 39.624 mm Hub Projection (HL): 19.050 mm Category: Gears - Spur - Standard - 8DP Steel
Part Number: G051B-16-V8-318-222-CG Spur Gears - 16 tooth - 50.8x22.225 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $350.14 AUD Regular price Sale price $350.14 AUD Unit price per Each View the product page first if you are unsure.
G051B-16-V8-318-222-CG --- Spur Gears - 16 tooth - 50.8x22.225 mm - Steel 0.20 carbon steel with no subsequent treatment G051B-16-V8-318-222-CG --- Spur Gears - 16 tooth - 50.8x22.225 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $350.14 AUD Regular price Sale price $350.14 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Pitch Circle Diameter (PD) 11.90 mm _{(0.469 in.)}	Bore (d) 4.000 mm _{(0.157 in.)}	Outside Diameter (OD) 13.300 mm	Face Width (FW) 6.000 mm
Material: Acetal - No Insert Hub Diameter (D1): 9.00 mm Hub Projection (HL): 9.00 mm Category: Gears - Spur - Standard - Module 0.7 Plastic
Part Number: G012B-17-M07-060-040-A-P (2 Pcs) Spur Gears - 17 tooth - 11.9x4 mm - Acetal - No Insert 5 units (10 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 2
Teeth 17	Pitch Circle Diameter (PD) 11.90 mm _{(0.469 in.)}	Bore (d) 4.000 mm _{(0.157 in.)}	Outside Diameter (OD) 13.300 mm
Material: Acetal - No Insert Face Width (FW): 6.000 mm Hub Diameter (D1): 9.00 mm Hub Projection (HL): 9.00 mm Category: Gears - Spur - Standard - Module 0.7 Plastic
Part Number: G012B-17-M07-060-040-A-P (2 Pcs) Spur Gears - 17 tooth - 11.9x4 mm - Acetal - No Insert 5 units (10 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 2
G012B-17-M07-060-040-A-P (2 Pcs) --- Spur Gears - 17 tooth - 11.9x4 mm - Acetal - No Insert Sale G012B-17-M07-060-040-A-P (2 Pcs) --- Spur Gears - 17 tooth - 11.9x4 mm - Acetal - No Insert Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 5 Available Now Sale
Teeth 17	Pitch Circle Diameter (PD) 17.00 mm _{(0.669 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}		Face Width (FW) 8.00 mm
Material: S45C Steel Hub Diameter (D1): 14.00 mm Hub Projection (HL): 8.00 mm Category: Gears - Spur - Standard - Module 1
Part Number: G017B-017-M1-080-050-C Spur Gears - 17 tooth - 17x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each
Teeth 17	Pitch Circle Diameter (PD) 17.00 mm _{(0.669 in.)}	Bore (d) 5.00 mm H8 _{(0.197 in.)}
Material: S45C Steel Face Width (FW): 8.00 mm Hub Diameter (D1): 14.00 mm Hub Projection (HL): 8.00 mm Category: Gears - Spur - Standard - Module 1
Part Number: G017B-017-M1-080-050-C Spur Gears - 17 tooth - 17x5 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each View the product page first if you are unsure.
G017B-017-M1-080-050-C --- Spur Gears - 17 tooth - 17x5 mm - S45C Steel G017B-017-M1-080-050-C --- Spur Gears - 17 tooth - 17x5 mm - S45C Steel Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G018B-17-D24-064-048-AB-G Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G018B-17-D24-064-048-AB-G Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each View the product page first if you are unsure.
G018B-17-D24-064-048-AB-G --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert G018B-17-D24-064-048-AB-G --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G018B-17-D24-064-048-A-P Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal 6 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G018B-17-D24-064-048-A-P Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal 6 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G018B-17-D24-064-048-A-P --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal G018B-17-D24-064-048-A-P --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per 6 Available Now
Teeth 18	Pitch Circle Diameter (PD) 9.000 mm _{(0.354 in.)}	Bore (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (OD) 10.00 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 6.00 mm Hub Projection (HL): 4.0 mm Category: Gears - Spur - Standard - 24DP
Part Number: G009B-18-M05-030-030-A-P Spur Gears - 18 tooth - 9x3 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 9.000 mm _{(0.354 in.)}	Bore (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (OD) 10.00 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 6.00 mm Hub Projection (HL): 4.0 mm Category: Gears - Spur - Standard - 24DP
Part Number: G009B-18-M05-030-030-A-P Spur Gears - 18 tooth - 9x3 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
G009B-18-M05-030-030-A-P --- Spur Gears - 18 tooth - 9x3 mm - Acetal G009B-18-M05-030-030-A-P --- Spur Gears - 18 tooth - 9x3 mm - Acetal Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 10.574 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Category: Gears - Spur - Standard - 48DP
Part Number: G010B-18-D48-032-032-AB-G Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 10.574 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Category: Gears - Spur - Standard - 48DP
Part Number: G010B-18-D48-032-032-AB-G Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G010B-18-D48-032-032-AB-G --- Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert G010B-18-D48-032-032-AB-G --- Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 15.88 mm	Face Width (FW) 4.76 mm
Material: Acetal - Brass insert Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Category: Gears - Spur - Standard - 48DP
Part Number: G014B-18-D32-048-032-AB-G Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 15.88 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Category: Gears - Spur - Standard - 48DP
Part Number: G014B-18-D32-048-032-AB-G Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
G014B-18-D32-048-032-AB-G --- Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert G014B-18-D32-048-032-AB-G --- Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (OD) 15.850 mm	Face Width (FW) 4.775 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 11.430 mm Hub Projection (HL): 7.874 mm Category: Gears - Spur - Standard - 32DP
Part Number: G014B-18-V32-048-048-CG Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $130.23 AUD Regular price Sale price $130.23 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (OD) 15.850 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 4.775 mm Hub Diameter (D1): 11.430 mm Hub Projection (HL): 7.874 mm Category: Gears - Spur - Standard - 32DP
Part Number: G014B-18-V32-048-048-CG Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $130.23 AUD Regular price Sale price $130.23 AUD Unit price per Each View the product page first if you are unsure.
G014B-18-V32-048-048-CG --- Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment G014B-18-V32-048-048-CG --- Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $130.23 AUD Regular price Sale price $130.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 14.29 mm _{(0.563 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.900 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 32DP
Part Number: G014B-18-D32-048-040-A-P Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 14.29 mm _{(0.563 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.900 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 32DP
Part Number: G014B-18-D32-048-040-A-P Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each View the product page first if you are unsure.
G014B-18-D32-048-040-A-P --- Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal G014B-18-D32-048-040-A-P --- Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-080-050-C-ND Spur Gears - 18 tooth - 18x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 20.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-080-050-C-ND Spur Gears - 18 tooth - 18x5 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.00 mm H8 _{(0.236 in.)}		Face Width (FW) 10.00 mm
Material: S45C Steel Hub Diameter (D1): 14.00 mm Hub Projection (HL): 8.00 mm Category: Gears - Spur - Standard - Module 1
Part Number: G018B-018-M1-100-060-C Spur Gears - 18 tooth - 18x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.00 mm H8 _{(0.236 in.)}
Material: S45C Steel Face Width (FW): 10.00 mm Hub Diameter (D1): 14.00 mm Hub Projection (HL): 8.00 mm Category: Gears - Spur - Standard - Module 1
Part Number: G018B-018-M1-100-060-C Spur Gears - 18 tooth - 18x6 mm - S45C Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each View the product page first if you are unsure.
G018B-018-M1-100-060-C --- Spur Gears - 18 tooth - 18x6 mm - S45C Steel G018B-018-M1-100-060-C --- Spur Gears - 18 tooth - 18x6 mm - S45C Steel Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 8.000 mm	Type Hubless
Material: Carbon Steel Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-080-060-C-ND Spur Gears - 18 tooth - 18x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 20.000 mm
Material: Carbon Steel Face Width (FW): 8.000 mm Type: Hubless Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-080-060-C-ND Spur Gears - 18 tooth - 18x6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 10.000 mm
Material: Steel AISI 4135 Hub Diameter (D1): 15.00 mm Hub Projection (HL): 10.00 mm Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-100-080-C-PD Spur Gears - 18 tooth - 18x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm
Material: Steel AISI 4135 Face Width (FW): 10.000 mm Hub Diameter (D1): 15.00 mm Hub Projection (HL): 10.00 mm Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-100-080-C-PD Spur Gears - 18 tooth - 18x8 mm - Steel AISI 4135 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm	Face Width (FW) 12.000 mm	Type Hubless
Material: Carbon Steel Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-120-080-C-ND Spur Gears - 18 tooth - 18x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 18.00 mm _{(0.709 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Outside Diameter (OD) 20.000 mm
Material: Carbon Steel Face Width (FW): 12.000 mm Type: Hubless Category: Gears - Spur - Standard - Module 1
Part Number: G018B-18-M1-120-080-C-ND Spur Gears - 18 tooth - 18x8 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-D24-064-048-A-P Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-D24-064-048-A-P Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G019B-18-D24-064-048-A-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal G019B-18-D24-064-048-A-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm	Face Width (FW) 6.35 mm
Material: Brass Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.35 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-V24-064-048-B-P Spur Gears - 18 tooth - 19.05x4.762 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm
Material: Brass Face Width (FW): 6.35 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.35 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-V24-064-048-B-P Spur Gears - 18 tooth - 19.05x4.762 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each
G019B-18-V24-064-048-B-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Brass Sale G019B-18-V24-064-048-B-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Brass Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-D24-064-048-AB-G Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-D24-064-048-AB-G Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Each View the product page first if you are unsure.
G019B-18-D24-064-048-AB-G --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert G019B-18-D24-064-048-AB-G --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-D24-032-064-S3-N Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $42.50 AUD Regular price Sale price $42.50 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Category: Gears - Spur - Standard - 24DP
Part Number: G019B-18-D24-032-064-S3-N Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $42.50 AUD Regular price Sale price $42.50 AUD Unit price per Each View the product page first if you are unsure.
G019B-18-D24-032-064-S3-N --- Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G019B-18-D24-032-064-S3-N --- Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $42.50 AUD Regular price Sale price $42.50 AUD Unit price per 2 Available Now
