Collection: Bearings - Thrust Ball - Banded

Bearings (With Images)

Thrust Ball

Banded
Flat
Grooved

31 Products in this selection

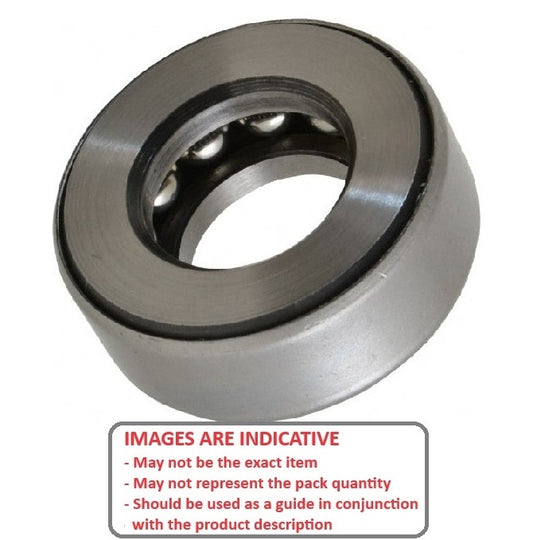

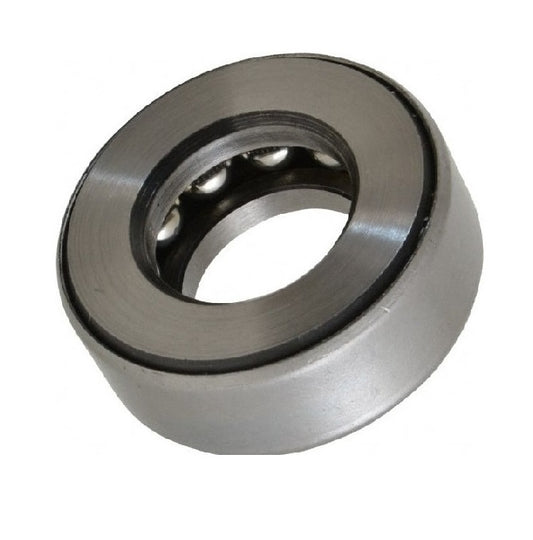

3 Piece Thrust Bearings Banded Type

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Banded. Smallparts promote the most popular MBA products.

Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity	Indicative Image
Shaft Diameter (A) 31.750 mm _{(1.25 in.)}	OD (D1) 59.538 mm _{(2.344 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 32.540 mm		Dynamic Load Capacity 3214 kgf
Material: Carbon Steel Static Load Capacity: 7009 kgf Max. Speed: 3200 RPM
Part Number: T-0318-0595-BND Thrust Ball Bearings - 31.75x59.538x15.875 mm / 32.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $117.77 AUD Regular price Sale price $117.77 AUD Unit price per Each
Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
Shaft Diameter (A) 31.750 mm _{(1.25 in.)}	OD (D1) 59.538 mm _{(2.344 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 32.540 mm
Material: Carbon Steel Dynamic Load Capacity: 3214 kgf Static Load Capacity: 7009 kgf Max. Speed: 3200 RPM
Part Number: T-0318-0595-BND Thrust Ball Bearings - 31.75x59.538x15.875 mm / 32.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $117.77 AUD Regular price Sale price $117.77 AUD Unit price per Each View the product page first if you are unsure.
T-0318-0595-BND --- Thrust Ball Bearings - 31.75x59.538x15.875 mm / 32.54 mm - Carbon Steel T-0318-0595-BND --- Thrust Ball Bearings - 31.75x59.538x15.875 mm / 32.54 mm - Carbon Steel Regular price $117.77 AUD Regular price Sale price $117.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 33.350 mm _{(1.313 in.)}	OD (D1) 59.538 mm _{(2.344 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 34.140 mm		Dynamic Load Capacity 3214 kgf
Material: Chrome Steel with Low Carbon Steel Band Static Load Capacity: 7009 kgf Max. Speed: 3200 RPM
Part Number: T-0334-0595-BND Thrust Ball Bearings - 33.35x59.538x15.875 mm / 34.14 mm - Chrome Steel with Low Carbon Steel Band Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (A) 33.350 mm _{(1.313 in.)}	OD (D1) 59.538 mm _{(2.344 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 34.140 mm
Material: Chrome Steel with Low Carbon Steel Band Dynamic Load Capacity: 3214 kgf Static Load Capacity: 7009 kgf Max. Speed: 3200 RPM
Part Number: T-0334-0595-BND Thrust Ball Bearings - 33.35x59.538x15.875 mm / 34.14 mm - Chrome Steel with Low Carbon Steel Band Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (A) 34.925 mm _{(1.375 in.)}	OD (D1) 62.713 mm _{(2.469 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 35.710 mm		Dynamic Load Capacity 3259 kgf
Material: Carbon Steel Static Load Capacity: 7411 kgf Max. Speed: 3000 RPM
Part Number: T-0349-0627-BND Thrust Ball Bearings - 34.925x62.713x15.875 mm / 35.71 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $210.41 AUD Regular price Sale price $210.41 AUD Unit price per Each
Shaft Diameter (A) 34.925 mm _{(1.375 in.)}	OD (D1) 62.713 mm _{(2.469 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 35.710 mm
Material: Carbon Steel Dynamic Load Capacity: 3259 kgf Static Load Capacity: 7411 kgf Max. Speed: 3000 RPM
Part Number: T-0349-0627-BND Thrust Ball Bearings - 34.925x62.713x15.875 mm / 35.71 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $210.41 AUD Regular price Sale price $210.41 AUD Unit price per Each View the product page first if you are unsure.
T-0349-0627-BND --- Thrust Ball Bearings - 34.925x62.713x15.875 mm / 35.71 mm - Carbon Steel T-0349-0627-BND --- Thrust Ball Bearings - 34.925x62.713x15.875 mm / 35.71 mm - Carbon Steel Regular price $210.41 AUD Regular price Sale price $210.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 36.525 mm _{(1.438 in.)}	OD (D1) 62.713 mm _{(2.469 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 37.310 mm		Dynamic Load Capacity 3259 kgf
Material: Carbon Steel Static Load Capacity: 7411 kgf Max. Speed: 3000 RPM
Part Number: T-0365-0627-BND Thrust Ball Bearings - 36.525x62.713x15.875 mm / 37.31 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $130.59 AUD Regular price Sale price $130.59 AUD Unit price per Each
Shaft Diameter (A) 36.525 mm _{(1.438 in.)}	OD (D1) 62.713 mm _{(2.469 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 37.310 mm
Material: Carbon Steel Dynamic Load Capacity: 3259 kgf Static Load Capacity: 7411 kgf Max. Speed: 3000 RPM
Part Number: T-0365-0627-BND Thrust Ball Bearings - 36.525x62.713x15.875 mm / 37.31 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $130.59 AUD Regular price Sale price $130.59 AUD Unit price per Each View the product page first if you are unsure.
T-0365-0627-BND --- Thrust Ball Bearings - 36.525x62.713x15.875 mm / 37.31 mm - Carbon Steel T-0365-0627-BND --- Thrust Ball Bearings - 36.525x62.713x15.875 mm / 37.31 mm - Carbon Steel Regular price $130.59 AUD Regular price Sale price $130.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 38.100 mm _{(1.5 in.)}	OD (D1) 65.888 mm _{(2.594 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 38.890 mm		Dynamic Load Capacity 3438 kgf
Material: Carbon Steel Static Load Capacity: 8170 kgf Max. Speed: 2800 RPM
Part Number: T-0381-0659-BND Thrust Ball Bearings - 38.1x65.888x15.875 mm / 38.89 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $93.14 AUD Regular price ~~$111.76 AUD~~ Sale price $93.14 AUD Unit price per Each
Shaft Diameter (A) 38.100 mm _{(1.5 in.)}	OD (D1) 65.888 mm _{(2.594 in.)}	Thickness (T) 15.875 mm _{(0.625 in.)}	Bore (d2) 38.890 mm
Material: Carbon Steel Dynamic Load Capacity: 3438 kgf Static Load Capacity: 8170 kgf Max. Speed: 2800 RPM
Part Number: T-0381-0659-BND Thrust Ball Bearings - 38.1x65.888x15.875 mm / 38.89 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 04, 2025 Regular price $93.14 AUD Regular price ~~$111.76 AUD~~ Sale price $93.14 AUD Unit price per Each View the product page first if you are unsure.
T-0381-0659-BND --- Thrust Ball Bearings - 38.1x65.888x15.875 mm / 38.89 mm - Carbon Steel Sale T-0381-0659-BND --- Thrust Ball Bearings - 38.1x65.888x15.875 mm / 38.89 mm - Carbon Steel Regular price $93.14 AUD Regular price ~~$111.76 AUD~~ Sale price $93.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (A) 41.275 mm _{(1.625 in.)}	OD (D1) 75.413 mm _{(2.969 in.)}	Thickness (T) 20.650 mm _{(0.813 in.)}	Bore (d2) 41.986 mm		Dynamic Load Capacity 5300 kgf
Material: Carbon Steel Static Load Capacity: 10340 kgf Max. Speed: 1950 RPM
Part Number: T-0413-0754-BND Thrust Ball Bearings - 41.275x75.413x20.65 mm / 41.986 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $314.95 AUD Regular price Sale price $314.95 AUD Unit price per Each
Shaft Diameter (A) 41.275 mm _{(1.625 in.)}	OD (D1) 75.413 mm _{(2.969 in.)}	Thickness (T) 20.650 mm _{(0.813 in.)}	Bore (d2) 41.986 mm
Material: Carbon Steel Dynamic Load Capacity: 5300 kgf Static Load Capacity: 10340 kgf Max. Speed: 1950 RPM
Part Number: T-0413-0754-BND Thrust Ball Bearings - 41.275x75.413x20.65 mm / 41.986 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $314.95 AUD Regular price Sale price $314.95 AUD Unit price per Each View the product page first if you are unsure.
T-0413-0754-BND --- Thrust Ball Bearings - 41.275x75.413x20.65 mm / 41.986 mm - Carbon Steel T-0413-0754-BND --- Thrust Ball Bearings - 41.275x75.413x20.65 mm / 41.986 mm - Carbon Steel Regular price $314.95 AUD Regular price Sale price $314.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 44.526 mm _{(1.753 in.)}	OD (D1) 78.588 mm _{(3.094 in.)}	Thickness (T) 20.650 mm _{(0.813 in.)}	Bore (d2) 45.237 mm		Dynamic Load Capacity 5300 kgf
Material: Carbon Steel Static Load Capacity: 10340 kgf Max. Speed: 1950 RPM
Part Number: T-0445-0786-BND Thrust Ball Bearings - 44.526x78.588x20.65 mm / 45.237 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $284.41 AUD Regular price Sale price $284.41 AUD Unit price per Each
Shaft Diameter (A) 44.526 mm _{(1.753 in.)}	OD (D1) 78.588 mm _{(3.094 in.)}	Thickness (T) 20.650 mm _{(0.813 in.)}	Bore (d2) 45.237 mm
Material: Carbon Steel Dynamic Load Capacity: 5300 kgf Static Load Capacity: 10340 kgf Max. Speed: 1950 RPM
Part Number: T-0445-0786-BND Thrust Ball Bearings - 44.526x78.588x20.65 mm / 45.237 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $284.41 AUD Regular price Sale price $284.41 AUD Unit price per Each View the product page first if you are unsure.
T-0445-0786-BND --- Thrust Ball Bearings - 44.526x78.588x20.65 mm / 45.237 mm - Carbon Steel T-0445-0786-BND --- Thrust Ball Bearings - 44.526x78.588x20.65 mm / 45.237 mm - Carbon Steel Regular price $284.41 AUD Regular price Sale price $284.41 AUD Unit price per Out of stock! Backorder Now
